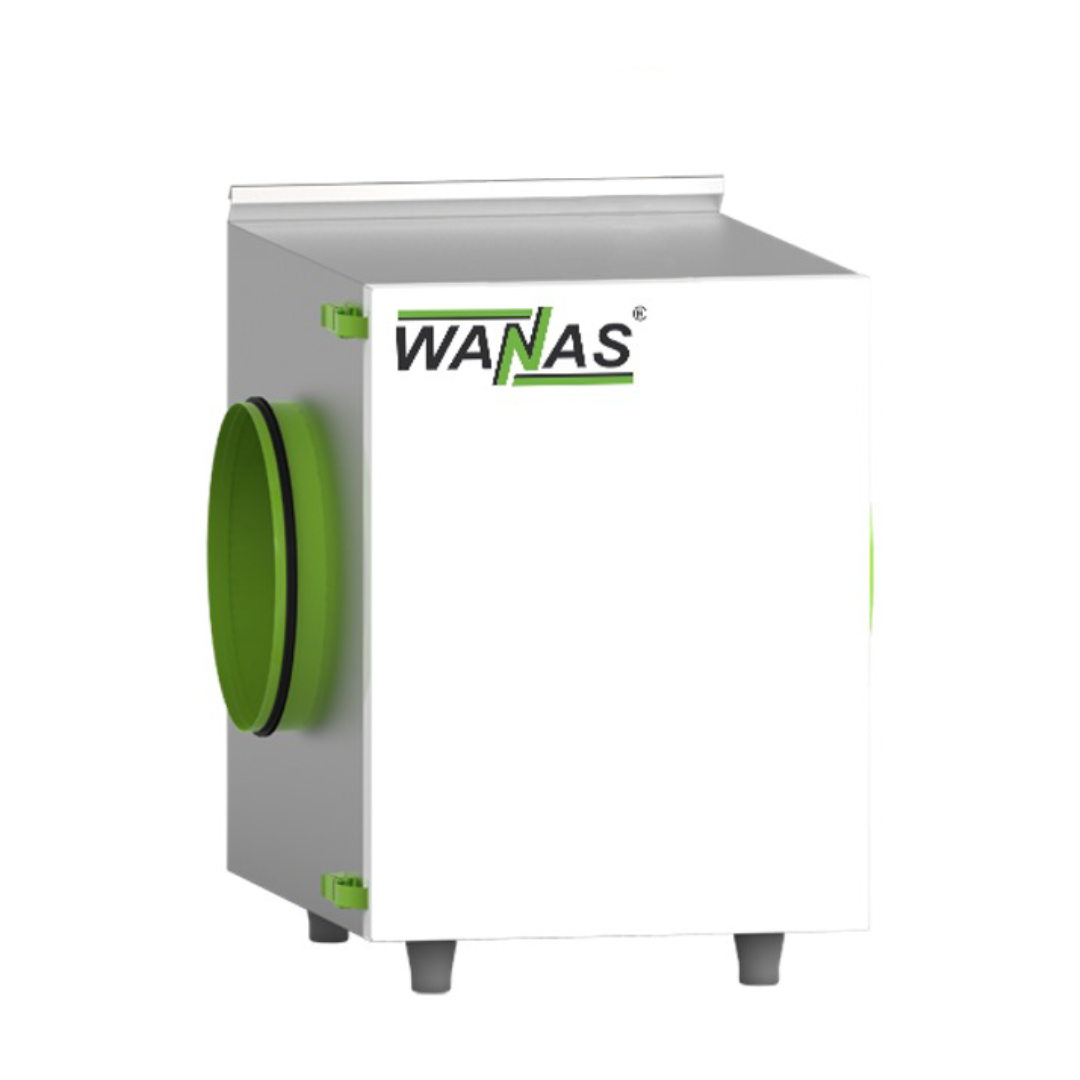

Ducted freon cooler WANAS MAXI R32 is a device intended for the extension of the mechanical ventilation installation with recuperator WANAS with the possibility of heating and cooling. Thanks to the extension of the installation we have the possibility to cool or heat up the air supplied to the rooms and to reduce the humidity of the air in summer. The unit should be mounted on the supply duct, behind the recuperator, and controlled by any WANAS recuperator. The unit requires an external air-conditioning unit - a 5.3 kW external condensing unit and an AHUKit control module - to work properly.



• Comfort - the ability to lower/raise the supply air temperature and, in summer, dehumidify the air, making the building feel much more comfortable. Allows humidity to be maintained between 40-60%.
• Efficiency - in summer it allows the supply air to be cooled to 12°C.
• Consistent design - the external appearance is consistent with WANAS recuperators.
• Easy control - the unit is controlled with the controller, which is standard with each WANAS recuperator.
• Convenient assembly - the module can be mounted freely in relation to the air flow, it is double-sided.
• Complete set - the unit comes complete with a wall bracket, wall mounting dowels, siphon and 1/4 inch and 3/8 inch cooling connectors.

• 5.3 kW refrigeration generator + AHUKit AHU-12-D1AG
• EXTRA TEMP SENSOR
