AIR HANDLING UNIT WANAS 1300H

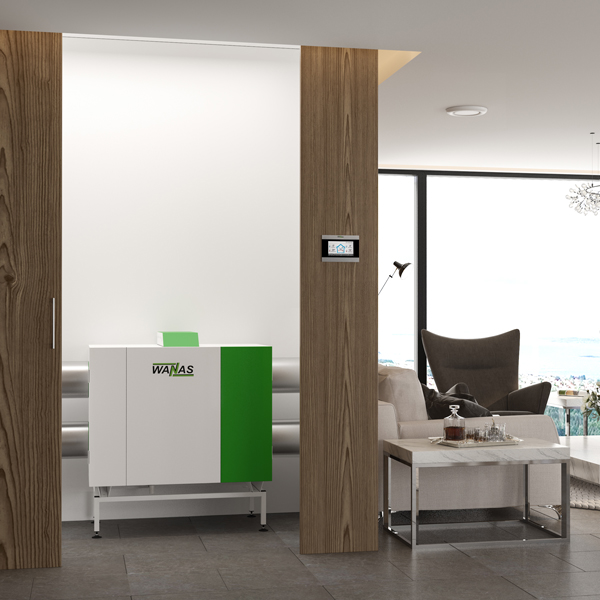

The WANAS 1300H recuperator is a compact ventilation unit with a horizontal nozzle system used for ventilation of single-family houses or small service facilities. It is characterized by very low energy consumption, quiet operation, high thermal efficiency and easy operation. The control panel was designed by a team of engineers manufactured by WANAS and made with attention to the smallest details, equipped with a number of excellent features to enjoy high comfort of use. It is designed for ventilating rooms with an area of up to 500 m2.


Each recuperator is equipped with a weekly touch controller and WANAS MOBILE CONTROL W-15 module for remote control of the control panel via the Internet.

 Air handling units produced by our company have:

  • weekly programme
  • SMART HEATER - automatically adjusting power
  • bypass control
  • 3 algorithms securing the exchanger against freezing
  • "fireplace" and "party" mode
  • secondary heater control
  • ground-coupled heat exchanger control
  • full-range (1-100%) efficiency adjustment
  • possiblle control based on humidity and COsensors
  • possible gas boiler control
  • possible connection via alarm central unit or bathroom switch to switch over operation to speed I or III
  • on-line remote control
  • filter replacement alert
  • flush and surface mounting






UEC (unit energy consumption) class - A
UEC for moderate climate kWh/(m2/year)
-38,93
UEC for cool climate kWh/(m2/year)
-76,41
UEC for warm climate
kWh/(m2/year)
-14,83
Max. flow rate (at 100 Pa) m3/h 1468
Acoustic power (gear I/ ac. UE 1254/2014) dBA 39/64
External static pressure (at 1300 m3/h)
Pa 240
Energy consumption W 20-764
Pre-heater power W 3 000
Power supply V/Hz 230/50
Stub pipe diameter mm 315
Max. efficiency % 95,30
Efficiency according UE 1254/2014, dT=13°C, SWM % 84,50
Height
mm
1080
Width mm 1284
Depth mm 720
Weight kg 152
Filter class - ISO COARSE 75%











- external fresh air

B - air extraction from rooms

C - air supply to rooms

D - spent air discharge to the outside
